Subsea Engineering and Construction

Pipeline system:

pipeline/flowline

type: rigid, flexible

function: production, export, condensate, water injection, gas injection/testing/lift, MEG line

Subsea Safety isolation Valve (SSIV)

Riser (steel catenary riser, rigid riser caisson, flexible riser)

pipeline end termination/ flowline termination assembly (PLET, FTA)

Pipeline insulation system (dry insulation, wet insulation, Direct Electric Heating/DEH)

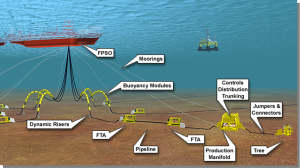

[caption id="attachment_346527" align="aligncenter" width="300" caption="SUBSEA PRODUCTION SYSTEM"]

1404616562347660884

[/caption]

Dapat terlihat pada gambar tentang pelatakan masing masing instalasi. FTA merupakan konektor antar pipeline agar memiliki keseimbangan.
